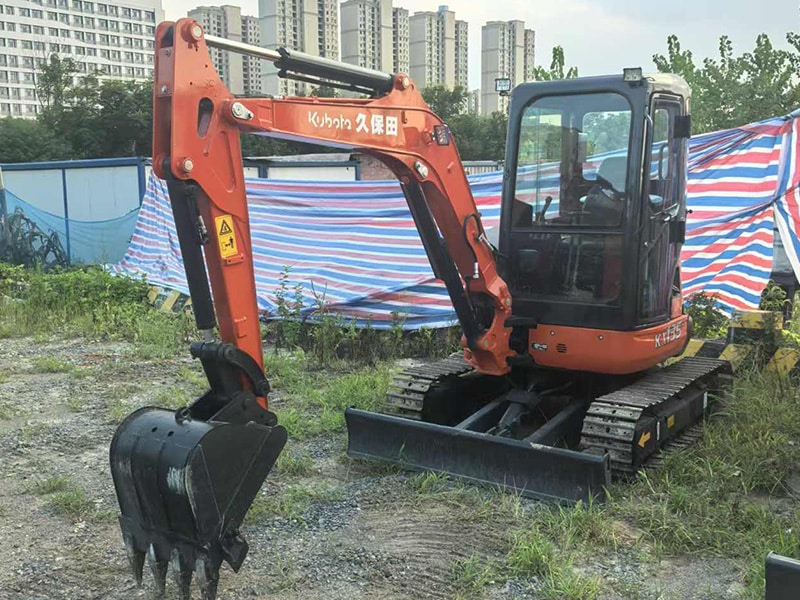

| Brand: | KUBOTA |
| Weight: | 3.5 Tons |
| Bucket capacity: | 0.11 m3 |
It has strong power and high fuel efficiency; it provides a variety of working mode options, and can adjust the engine power and hydraulic system flow according to different working conditions to achieve high efficiency and energy saving; the key structural parts such as the boom and stick adopt a reinforced design, which is more durable and can adapt to harsh working conditions; the reinforced chassis structure has strong load-bearing capacity, high stability, low failure rate and extended service life.
| KX135 | |
| Bucket capacity | 0.11m³ |
| Standard bucket width: with or without side teeth | 600/550mm |
| operating weight | 3590kg |
| Size | |
| full length | 4665mm |
| Overall height | 2440mm |
| full width | 1700mm |
| Minimum ground clearance | 290mm |

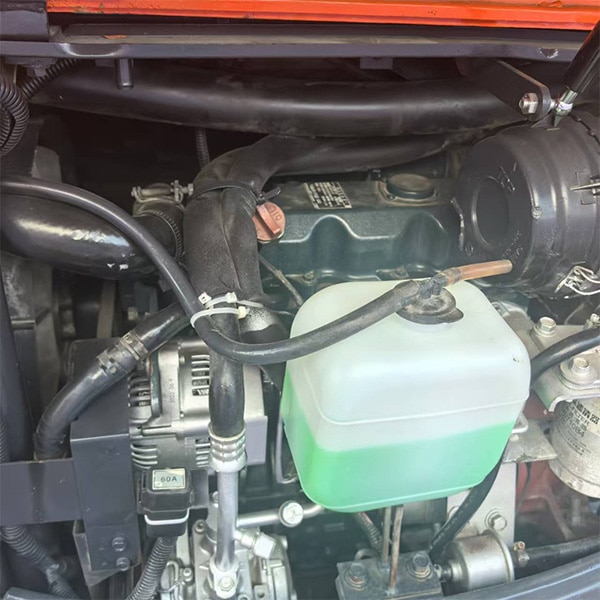

| Engine | |
| model | D1703-E2 |
| total exhaust volume | 1.647L(1,647ml) |
| Rated output power | 28.6PS（21.0kW）/2250rpm |
| Digging parameter | |
| Maximum digging height | 4730mm |
| Maximum discharge height | 3320mm |
| Maximum digging depth | 3135mm |
| Maximum vertical digging depth | 2510mm |
| Maximum digging radius | 5265mm |
| Boom offset: (left/right) | 600/635mm |
| Front minimum turning radius (when swinging) | 1,960(1,570)mm |
| Minimum rear turning radius | 850mm |
| Maximum digging force (bucket) | 27.6kN(2,810kgf) |
| Track | |
| Track type | Iron caterpillar track |
| Track width | 300mm |
| Walking | |
| Full length of track | 2100mm |
| Wheel spacing | 1665mm |
| Track center distance | 1400mm |
| Driving speed (low speed/high speed) | 3.0/4.6km/h |
| Climbing ability | 30° |
| Rotation speed (rpm) | 8.9 |

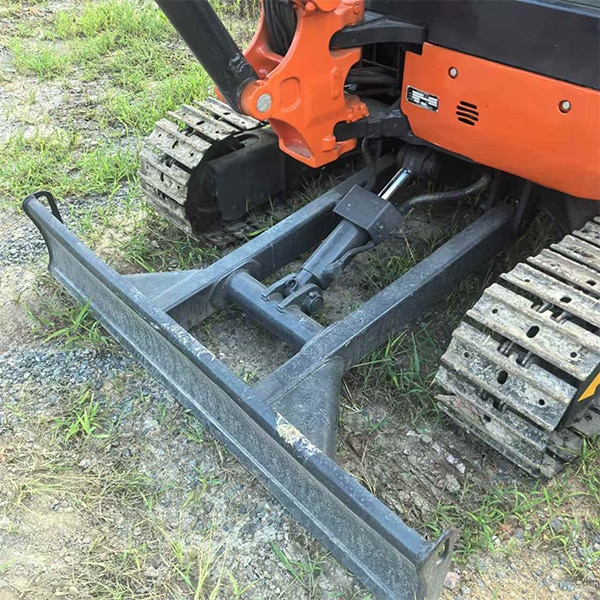

| Bulldozer | |
| Bulldozer (width) | 1700mm |
| Bulldozer (high) | 335mm |
| Lifting distance (GL up/down) | 370/370mm |
| Hydraulic pump type | Variable pump×2+gear pump×1 |
| Rotary motor type | plunger hydraulic motor |
| Travel motor type | 2 speed plunger hydraulic motor |
| fuel tank capacity | 40L |
